Power Block Plug'N'Play : choose the correct version
Find the version of Power Block Plug’N’Play, corresponding to your current battery box, thanks to the table below.
We advise you to check the plates dimensions with the clickable drawing in the table bellow.
If your bass is only equipped with an electronic closing plate, without a battery compartment:
Power Block Plug'N'Play : choose the correct version
Find the version of Power Block Plug’N’Play, corresponding to your current battery box, thanks to the table below.
We advise you to check the plates dimensions with the clickable drawing in the table bellow.
If your bass is only equipped with an electronic closing plate, without a battery compartment:

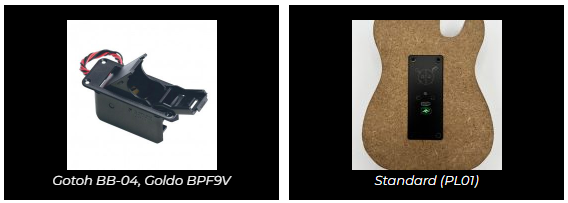

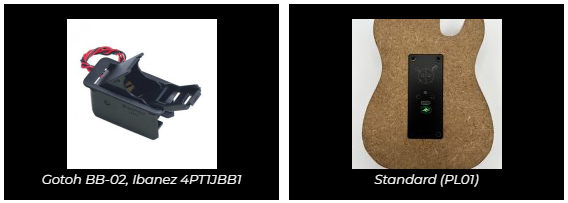

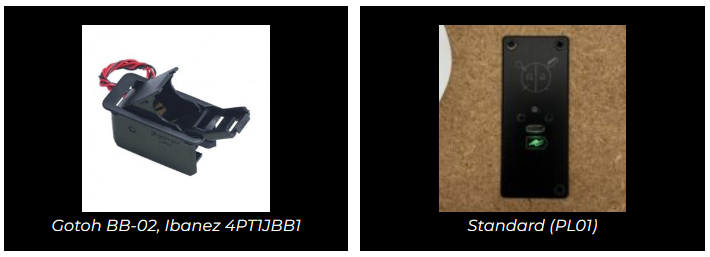

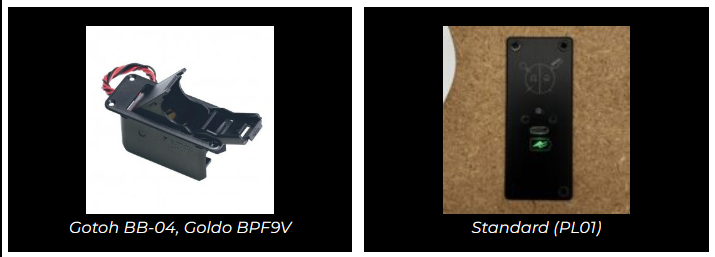

PL01 - STANDARD PLATE
Recommended voltage: 9V.
There are no lutherie modifications.
(Ref FGP: ELBB4)
Recommended voltage: 9V.
Add 4 screw holes. *
(Ref FGP : ELBB2)

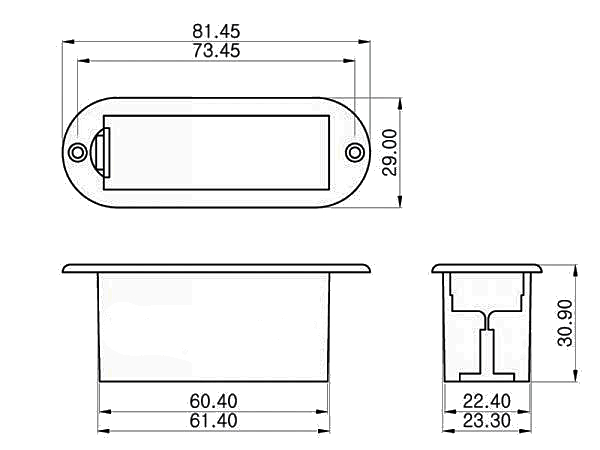

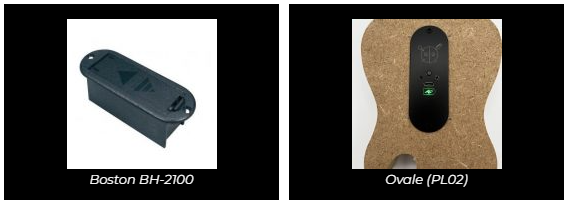

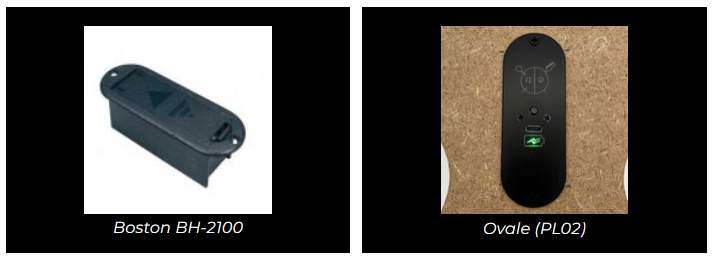

PL02 - OVAL PLATE
Recommended voltage: 9V.
There are no lutherie modifications.
(Ref FGP : ELBB5)

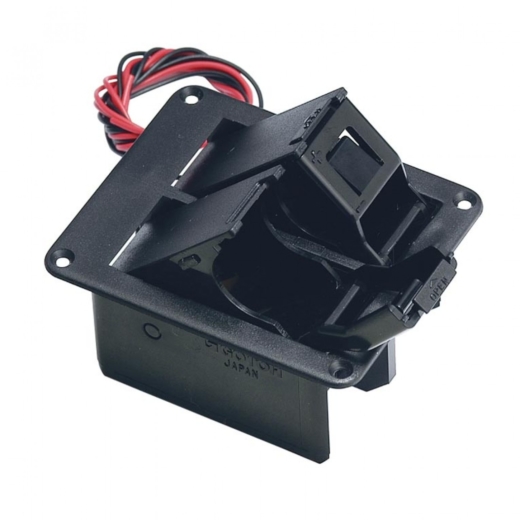

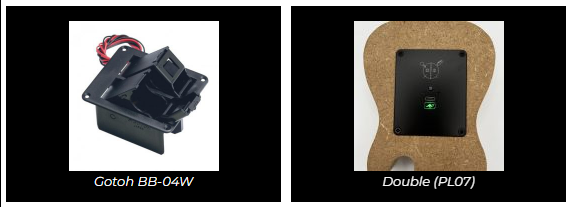

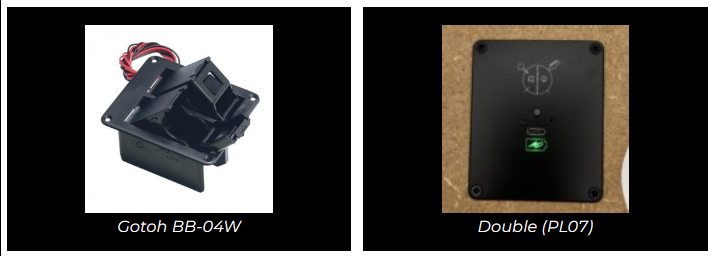

PL07 - DOUBLE PLATE
Recommended voltage: 18V.
There are no lutherie modifications.
(Ref FGP : ELBB4W)

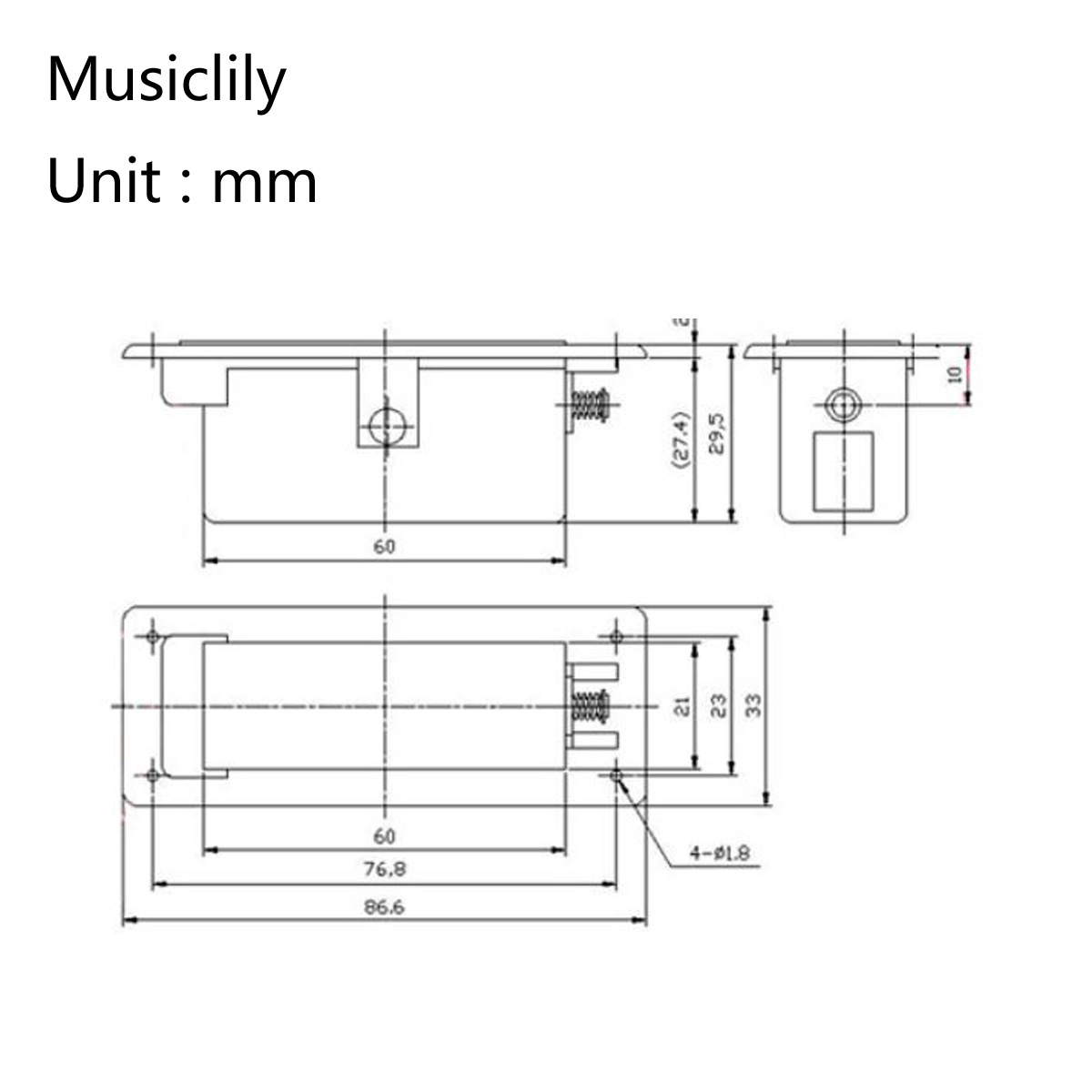

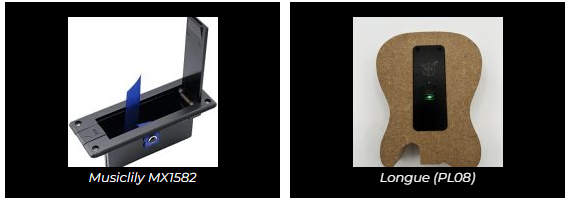

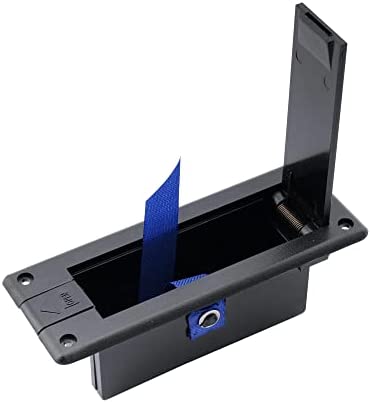

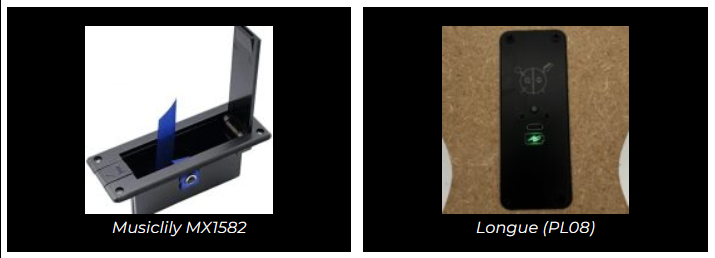

PL08 - LONG PLATE
Recommended voltage: 9V.
There are no lutherie modifications.

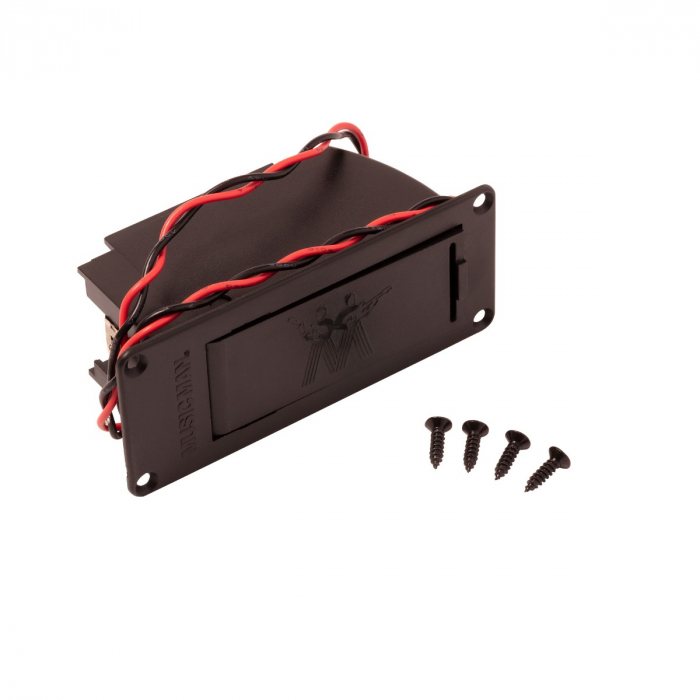

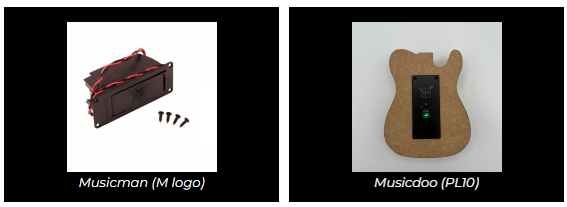

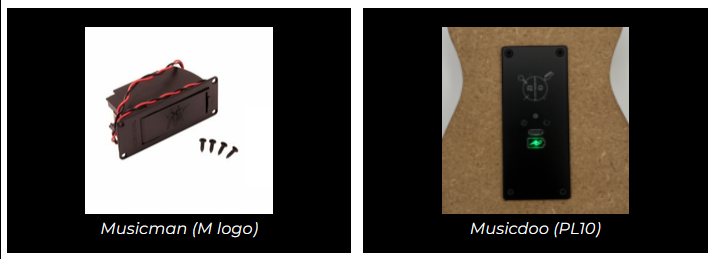

PL10 - MUSICDOO PLATE
Recommended voltage: 9V.
There are no lutherie modifications.

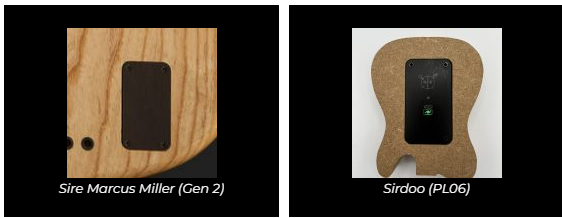

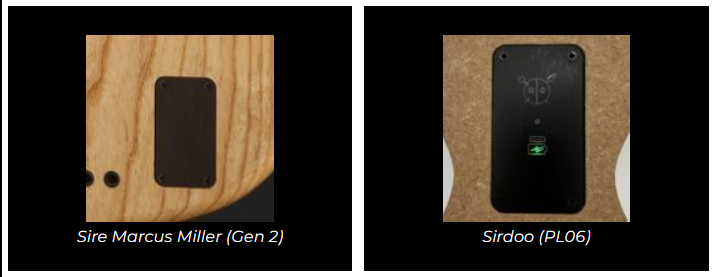

PL06 - SIRDOO PLATE
Recommanded voltage: 18V.
There are no lutherie modifications.
Order with a 2 mm raise to reach the thickness of the original plate.
For Generation 1 : Double plate.
For Generation 3 : Sirdoo-2 plate

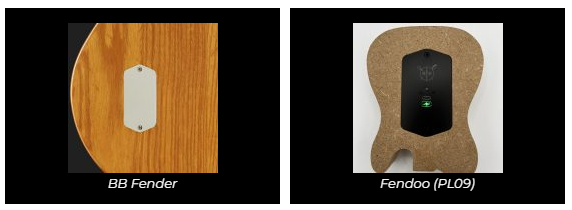

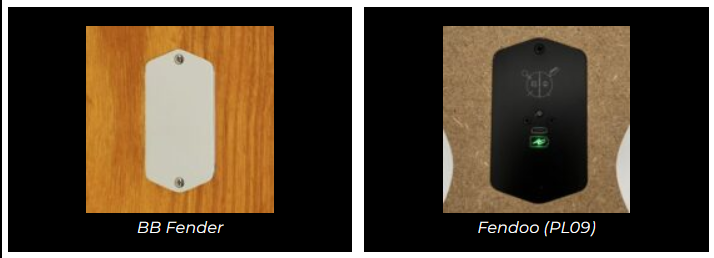

PL09 - FENDOO PLATE
Recommended voltage: 18V.
There are no lutherie modifications.

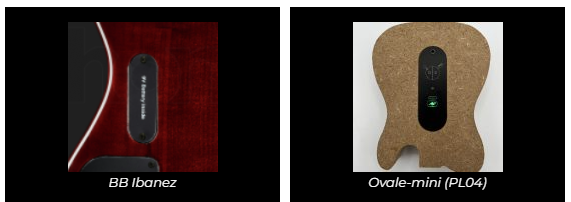

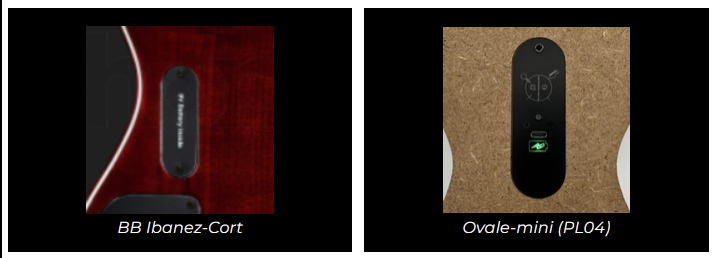

PL04 - MINI OVAL PLATE
Recommended voltage: 9V.
Check the dimensions : if the engraving is too short, it will fit with OEM version, with no lutherie modifications.

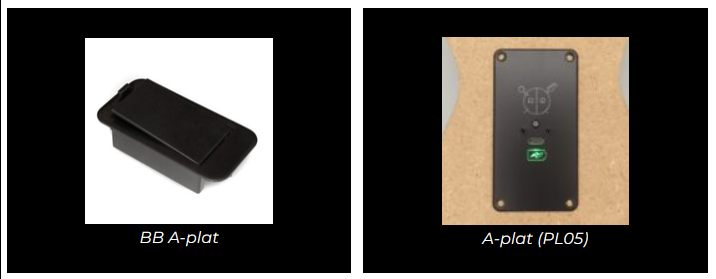

PL06 - A-plat PLATE
Recommanded voltage: 9V.
Order with a 2 mm raise to be compatible with shallow cavity (22 to 24 mm).
Screw holes must be added. *

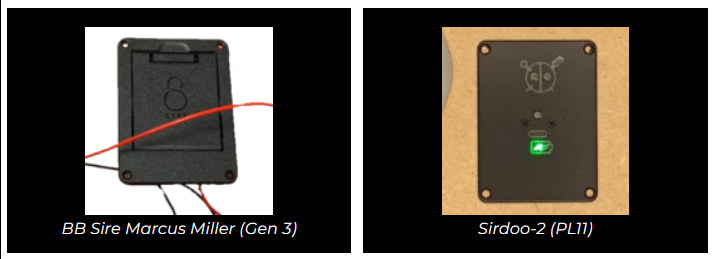

PL11 - Sirdoo-2 PLATE
Recommanded voltage: 18V.
There are no lutherie modifications.
For Generation 1 : Double plate.
For Generation 2 : Sirdoo plate

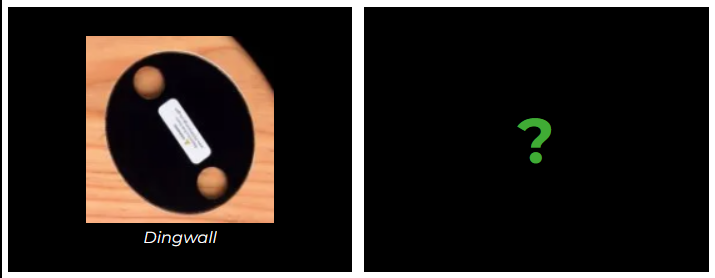

PL12 - Dingwall PLATE
Recommanded voltage: 18V.
Please send us the dimensions of your access panel or the model of your instrument, as not all plates are the same.
We will send you the one that fits your instrument perfectly.

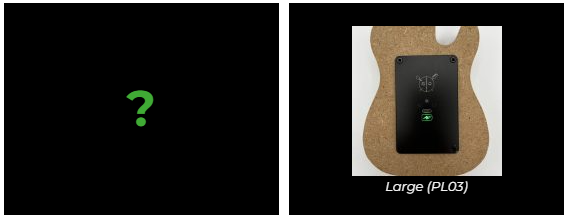

PL03 - WIDE PLATE
Recommended voltage: 9V.
Covers most non-standard Battery Boxes.
Order with a 2 mm raise to be compatible with shallow cavity (22 to 24 mm).
Screw holes must be added. *
Recommanded voltage: 9V.
There are no lutherie modifications.
(Ref FGP: ELBB4)
Recommanded voltage: 9V.
Add 4 screw holes. *
(Ref FGP : ELBB2)
Recommanded voltage: 9V.
There are no lutherie modifications.
(Ref FGP : ELBB5)
Recommanded voltage: 18V.
There are no lutherie modifications.
(Ref FGP : ELBB4W)
Recommanded voltage: 9V.
There are no lutherie modifications.
Recommanded voltage: 9V.
There are no lutherie modifications.
Recommanded voltage: 18V.
There are no lutherie modifications.
Order with a 2 mm raise to reach the thickness of the original plate.
For Generation 1 : Double plate.
For Generation 3 : Sirdoo-2 plate
Recommanded voltage: 9V.
Check the dimensions : if the engraving is too short, it will fit with OEM version, with no lutherie modifications.
Recommanded voltage: 9V.
Order with a 2 mm raise to be compatible with shallow cavity (22 to 24 mm).
Screw holes must be added. *
Recommanded voltage: 18V.
There are no lutherie modifications.
For Generation 1 : Double plate.
For Generation 2 : Sirdoo plate
PL12
?
Recommanded voltage: 18V.
Please send us the dimensions of your access panel or the model of your instrument, as not all plates are the same.
We will send you the one that fits your instrument perfectly.
?
Recommanded voltage: 9V.
Covers most non-standard Battery Boxes.
Order with a 2 mm raise to be compatible with shallow cavity (22 to 24 mm).
Screw holes must be added. *
* To add the screws, it is necessary to pre-drill the holes to a diameter of 2mm (to avoid the risks of screw breakage).
